Overview

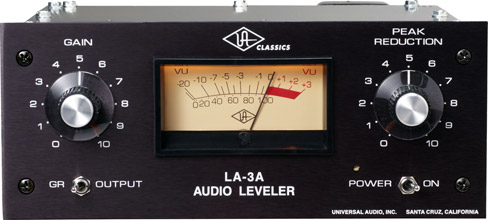

LA-3A Classic Audio Leveler

A Beloved Solid-State T4 Electro-Optical Classic Compressor

The LA-3A Classic Audio Leveler combines custom UA transformers and design cues from the 1176LN with the T4 electro-optical attenuator of the LA-2A to create its own unique compression characteristics and sonic signature. The original LA-3A marked the departure from the tube design of the Teletronix LA-2A. Immediately embraced as a studio workhorse — serving in the rack of the remote van used to record Prince & The Revolution’s Purple Rain and employed for double-duty during the recording and mixing of Justin Townes Earle’s Midnight At The Movies as examples — the LA-3A remains a favorite of engineers and producers worldwide to this day.

  • True to the original in design, solid-state, T4 electro-optical classic compressor
  • Custom UA transformers & T4 cell
  • 1.5ms attack time or less
  • Hand-built in USA; backed by 1-Year limited warranty
  • View All Features

Our UA Classics reissue of the LA-3A meticulously retains all the internal and external qualities of the original: The same simple control set, and the T4 electro-optical attenuator, which is the source of the LA-3A's program dependent compression. It also retains the 2RU half-rack design, and comes complete with a single-unit rack assembly — no additional kit is necessary. All the original rear panel connections and controls are also maintained, while the commonly performed “LA-3A gain mod” is added as an additional switch for maximum studio versatility.


Reviews

User Ratings

  • 1 Star
  • 2 Star
  • 3 Star
  • 4 Star
  • 5 Star
Average Rating (1 Reviews)
    • 1 Star
    • 2 Star
    • 3 Star
    • 4 Star
    • 5 Star
    LA3A makes mixing easy!
    by S. Hillert(Thursday 19 March, 2015)

    The LA3A just makes lead vocals find the perfect place in the mix every day! Read More


Artists
  • Michael Ilbert

    Engineer/producer Michael Ilbert's has crafted records by the Hives, Supergrass, and In Flames, but it's his work on Taylor Swift's Red and 1989 that have garnered him multiple Grammy nominations. Read More

    Neal Cappellino on mixing Brad Paisley

    Grammy-winning engineer Neal Cappellino has recorded and mixed hits for Nashville's biggest stars. Read More

    Damian Taylor Brings "The Weirdness"

    The Grammy-nominated producer explains how he got Battle Born, The Killers' latest album, battle-ready with Universal Audio. Read More


Features & Specs
LA-3A Classic Audio Leveler

Features:
  • True to the original in design, solid-state, T4 electro-optical classic compressor
  • Custom UA transformers & T4 cell
  • Discrete amplifier – up to 50dB gain
  • 1.5ms attack time or less
  • 0.06 seconds for 50% release
  • Rear panel "Gain Mod" switch for gain control
  • Designed by ex-UREI® engineer, Dennis Fink
  • Hand-made at UA; backed by 1-Year limited warranty
Technical Specifications:

External Connections
Jones Barrier terminals and XLR connectors

Input Impedance
50, 150, 250, 600 ohms

Distortion
Less than 0.33% at +24dBm

Frequency Response
20Hz - 20kHz +/- 0.5 dB

Noise Floor
-80 dB below program at threshold of limiting

Gain
30 ± 1dB, 50 ± 1dB

Output Level
+20 dBm nominal

Input Level
0dBm @ 50dB gain; +20dBm @ 30dB gain

Attack
1.5ms or less

Release
0.06 seconds for 50% release
