MXR® Flanger/Doubler Plug-In

Unmistakable Bucket-Brigade Flanging and Doubling, Captured Perfectly for the UAD-2 Platform.

For more than 30 years, musicians and engineers have relied upon the MXR Flanger/Doubler as one of best-sounding bucket-brigade flanging effects ever made. Through its signature flanging, doubling, and delay effects, the MXR Flanger/Doubler imprints a unique stamp on guitars, bass, keys, drums, or just about any source needing movement and depth. Developed in close collaboration with Dunlop Manufacturing, the MXR Flanger/Doubler plug-in for the UAD-2 platform replicates the legendary sound of this classic studio and stage effect with unparalleled accuracy.

Features

• Exacting circuit emulation of one the most popular electronic flangers ever made
• Produces lush electronic flanging or short delay and doubling effects — perfect for use on guitars, bass, keys, drums, and more
• “UAD Exclusive” features include Single/Dual switch for single sweep stereo output or dual sweep 180º antiphase output, Mono, and LFO Tempo Sync
• Officially licensed and approved by Dunlop Manufacturing
• Includes presets from Neil Dorfsman (Dire Straits, Paul McCartney), Vance Powell (The Raconteurs, Buddy Guy) and Chuck Zwicky (Prince, Jeff Beck)
• Requires a UAD-2 DSP Accelerator Card or Apollo Interface available from authorized dealers worldwide
• View All Features

History
Flanging originated as a tape effect where two tape machines are playing two identical and synchronized signals, and one is gradually delayed to create unique comb filtering effects. In the late 70’s, MXR introduced the famed Flanger/Doubler unit which, unlike tape flanging, recreated this effect electronically via “bucket brigade” design — in which the analog signal is passed through a series of capacitors. With each capacitor, the audio signal is degraded, creating significant coloration and a unique tone. A portion of the output signal is then fed back to the input as a re-circulating delay line, producing a resonance that further increases the intensity of the effect. The “phase” (more accurately, the polarity) of the fed-back signal is sometimes inverted, producing another variation on the classic flanging sound.

Parameters
With the MXR Flanger/Doubler plug-in’s available controls, you can dial in the perfect Width, Speed, and Regeneration settings for the flange or delay effect, while using the onboard Mix control to blend-in the desired amount of the dry signal. Clicking the Invert button flips the wet signal’s phase by 180º for a different flavor of filtering. For static effects, you can set the Sweep controls (Width/Speed) to minimum, while using the Manual control to set the desired phase offset (Flange) or delay amount (Double).

Going beyond the hardware, the MXR Flanger/Doubler includes true stereo operation. With the MXR Flanger/Doubler inserted on stereo tracks, the Dual/Single button switches between “Single” (0º in-phase) sweep mode, or “Dual” sweep mode, providing 180º antiphase operation. Another UAD-exclusive feature, the sum to Mono button, allows for creatively collapsing the stereo output, or for checking phase relationships. Lastly, the plug-in’s Tempo Sync control allows the plug-in’s LFO to synchronize to any beat value. For perfectly timed sweeps, users can lock to a song’s existing tempo settings from within their DAW.

In Use
The MXR Flanger/Doubler is well suited for sound-shaping, recording, and mixing, and even for adding some post-production flavor. Flanging is particularly popular as an individual effect on a wide range of musical sources — including guitar, bass, drums, keyboards, and more. Another common use for the MXR Flanger/Doubler is as a group effect, where effecting more than one signal is desired. Try applying the MXR Flanger/Doubler to drum busses or even the entire mix, most often for a brief period in the song, such as a break or bridge. In addition to Flanging, the Flanger/Doubler excels as a short-range delay/doubler.

•

  Ken Lewis Crafts Hits for Fun, Kanye West

  Top acts call on Ken Lewis to turn their musical ideas into platinum hits. Read More



  Andrew Scheps on Engineering the Chili Peppers

  Andrew Scheps’ engineering and mixing credits read like a who’s who of popular music. Read More

Features:

• Exacting circuit emulation of one the most popular electronic flangers ever made
• Produces lush electronic flanging or short delay and doubling effects — perfect for use on guitars, bass, keys, drums, and more
• “UAD Exclusive” features include Single/Dual switch for single sweep stereo output or dual sweep 180º antiphase output, Mono, and LFO Tempo Sync
• Includes presets from Neil Dorfsman (Dire Straits, Paul McCartney), Vance Powell (The Raconteurs, Buddy Guy) and Chuck Zwicky (Prince, Jeff Beck)
• Officially licensed and approved by Dunlop Manufacturing
• Requires a UAD-2 DSP Accelerator Card or Apollo Interface available from authorized dealers worldwide

See the UAD Instance Chart here

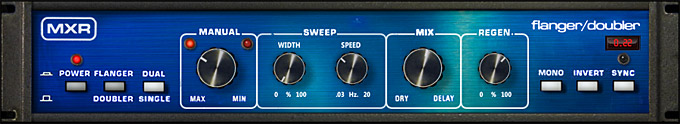

Parameters:

• Flanger/Doubler — Switches between Delay effect (Out) and Flanging effect (In)
• Single/Dual — Under stereo in/stereo out operation switches between “Single” sweep mode (Out) providing 0º in-phase operation, or “Dual” sweep mode (In) providing 180º antiphase operation
• Manual — Allows user to set a static predelay for Flanger or Doubler from Min to Max (0 to 100%) when Sweep Width is set to 0%
• Sweep Width — Allows user to adjust the amount of Flange or Delay modulation from 0 to 100%
• Sweep Speed — Allows the user to select the Speed (frequency) of the Flanger or Delay effect from .03 to 20 Hz
• Mix — Sets the Dry/Wet effect blend from 0 to 100%; dry signal is colored by unit electronics
• Regen — Allows the user to set the regeneration (feedback) of the output signal to the input for resonance effects from 0 to 100%
• Mono — Provides mono sum functionality of dry and wet signal under mono in, stereo out operation and true stereo operation (In)
• Invert — Provides 180º phase reverse for effected signal (In)
• LFO Sync — provides DAW tempo based synchronization options for the Flanger’s LFO sweep
• LFO Reset — Clicking either Sweep LED provides a reset to the modulation LFO zero crossing point; left LED provides negative sweep, right LED provides positive sweep
• Power — Provides full plug-in disable/enable
