EMT® 140 Classic Plate Reverberator Plug-In

Three Unique Plate Reverbs Captured in a Single, Powerful Plug-In

Universal Audio “steps up to the plate,” rendering another classic tool for the DAW: Introducing the EMT 140 Plug-In. German company EMT made a breakthrough in 1957 with the release of the EMT 140, which utilized a resonating metal plate to create ambience. Nothing is quite like the wonderfully lush and distinctive tone of plate reverb, which still endures as part of the fabric of modern music. Endorsed by EMT Studiotechnik GmbH, and painstakingly modeled by Universal Audio, this plug-in replicates the sonic signature of three uniquely different EMT 140s installed at The Plant Studios in Sausalito, CA. Impractical or impossible in the past, UA again brings classic analog tools within the reach of everyone.

• Based on three EMT 140 plates from The Plant Studios – each with a unique sound
• Fully endorsed by EMT Studiotechnik GmbH
• Highly prized smooth and natural plate sound
• Requires a UAD-1 or UAD-2 DSP Accelerator Card available from authorized dealers worldwide
• View All Features

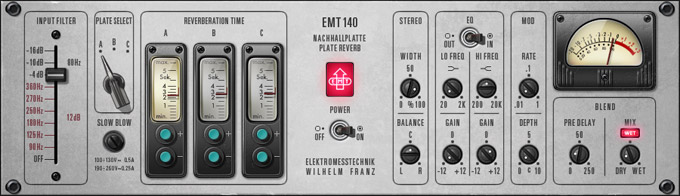

The EMT 140 plug-in is an amalgam of real plate system amplifiers and remote control components, and also offers useful feature enhancements that recreate common applications when using plate reverbs. Emulations of both the original EMT 80 Hz shelf filter electronics and the popular aftermarket Martech electronics with their 12dB filters cut filters are represented first in the signal path. The user is then presented with three switchable plate controllers (A, B and C) that recreate the mechanical dampers that decrease plate decay time, each with its own measured characteristic sound. Plates A and B use the original EMT electronics system, for which the plates themselves had not been tuned in some time. Plate C uses the more modern Martech electronics which had just been fully serviced.

EMT^® 140 Classic Plate Reverberator Plug-In

Features:

• Based on three EMT 140 plates from The Plant Studios – each with a unique sound
• Fully endorsed by EMT Studiotechnik GmbH
• Highly prized smooth and natural plate sound
• Decay, two-band EQ, Predelay, Width & Wet/Dry
• Control modeled analog high pass filters: stock EMT 80 Hz and Martech
• Reverb modulation with Depth and Rate control
• Stereo Balance control
• Requires a UAD-1 or UAD-2 DSP Accelerator Card available from authorized dealers worldwide

See the UAD Instance Chart here

Parameters:

• Plate Select chooses from three distinct plates, A, B and C
• A, B and C Damper Controls independently adjust reverb time from .5 to 5.5 seconds for all three plates
• Input Filtering: Martech fixed 12 dB Low Cut Filter at 90, 125, 180, 250, 270, 360 Hz or EMT 80 Hz fixed Shelving EQ at -4,-10,-16 dB
• Continuous Stereo Width controls effect image from 0% (mono) to 100% (full width)
• Continuous Stereo Balance positions effect field from hard left to hard right or anywhere in between
• Output Filtering: Continuous Low and High Shelving EQ filters from 20 Hz to 2 kHz and 200Hz to 20 kHz with +/- 12 dB Gain, plus In/Out global EQ bypass
• Continuous Pre Delay from 0-250 ms
• Continuous Mix Blend from 100% Dry to 100% Wet plus Wet Solo
• Continuous Modulation Rate from .01 Hz to 1 Hz
• Continuous Modulation Depth from 0 to 10 cents
• VU meter represents EMT 140 Output Level
• Power bypasses entire EMT 140 circuit

•
