Why 32-Bit Audio Matters for Your Recordings

The quality of the converters on your audio interface are more than just a number on a spec sheet.

You've probably seen “32-bit” splashed across interface marketing and wondered if your 24-bit recordings just became obsolete. They haven't. But there is a real, measurable upgrade happening inside modern interfaces, and it's not quite the one most headlines are talking about.

In this article, we'll break down what bit depth actually does, why 24-bit replaced 16-bit CD-quality audio as the modern studio standard, and why cutting-edge 32-bit PCM converters like the one inside our second generation Volt USB Audio Interfaces deliver real performance gains.

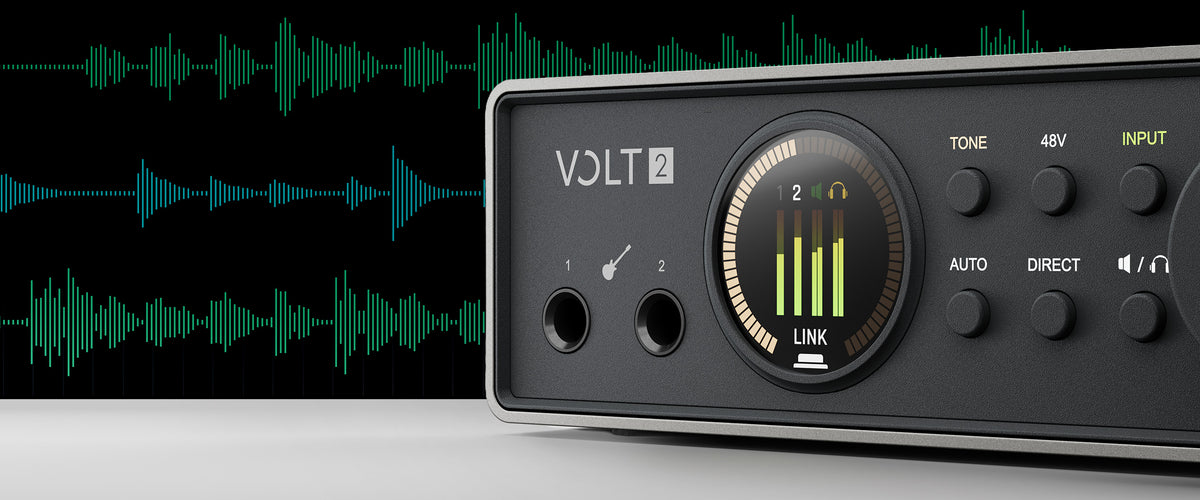

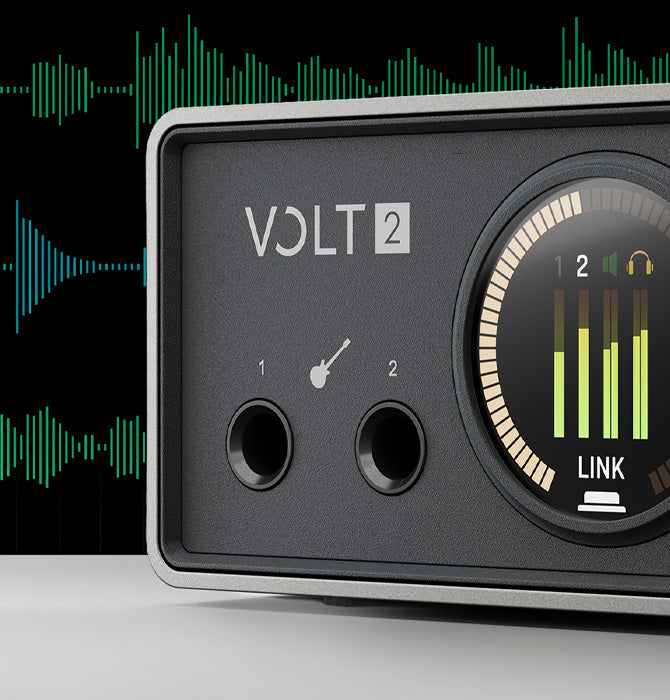

Volt Gen 2's cutting-edge 32-bit PCM converters capture more headroom and a quieter noise floor — whether you're recording at 24-bit or 32-bit.

Bit Depth in Plain English

Every digital recording breaks sound into a series of loudness measurements called samples. Bit depth determines how many steps are available between silence and full volume. More bits means more steps. This translates to a smoother, more precise capture of your signal and a lower noise floor.

At a 44.1 kHz sample rate, a 16, 24, or 32-bit "word" is stored 44,100 times per second to represent your input waveform.

Each extra bit roughly doubles the number of available steps, adding about 6 dB of usable dynamic range. This goes all the way down to the quietest detail your recording can hold. Stack that across a full word length and you get:

16-bit: ~96 dB of dynamic range
24-bit: ~144 dB of dynamic range
32-bit: ~192 dB of dynamic range

This is why 24-bit overtook 16-bit CD-quality audio as the studio standard. CDs top out around 96 dB at best, which sounds like plenty until you're tracking something like a quiet vocal or an orchestra. 24-bit's extra headroom (theoretically 48 dB more) means you can track input levels more conservatively and still capture sounds with very little background hiss or noise.

More bits allow for more dynamic range, and larger signal swings between maximum level (0 dBFS) and the minimum noise floor (below -90 dBFS, towards the least significant bit).

24-Bit vs. 32-Bit: The Practical Difference

Here's the part that trips people up: 24-bit's 144 dB theoretical ceiling already outclasses what any real microphone, preamp, or converter circuit can achieve. So does 32-bit even matter? It does. And not because your DAW project needs more bits to store.

It matters because of what a modern 32-bit PCM converter chip can achieve at the analog stage. In the real world, dynamic range and distortion are set by the silicon chipset and circuit design around the converter — such as buffer amplifiers, filters, clocking and digital timing circuits, current-to-voltage output stages, and clean power supply quality. So it’s not just the bit-depth number on the box.

That's the upgrade inside the second generation of Volt USB audio interfaces. You get a cutting-edge 32-bit PCM chipset and design, delivering genuinely better real-world performance than previous generations of Volt interfaces, even when you're recording at 24-bit.

For context,  -100 dB of distortion is already about 100,000 times quieter than the signal itself, so Volt Gen 2's -108 to -112 dB is deep into territory no ear or mix will ever expose. Volt Gen 1 remains a genuinely capable interface for anyone starting out; Gen 2 simply raises the ceiling for professional, high-headroom work.



Specification	Volt Gen 1	Volt Gen 2
A/D Dynamic Range	112 dB A-weighted	119 dB A-weighted
A/D THD+N	-103 dB (0.0007%)	-108 dB (0.0004%)
D/A Dynamic Range	110 dB A-weighted	126 dB A-weighted
D/A THD+N	-102.5 dB (0.00075%)	-112 dB (0.0003%)

A 16 dB jump in D/A dynamic range is bigger than it looks on paper. Decibels are logarithmic, so it works out to roughly 6.3 times more dynamic range on playback. Distortion has dropped too: D/A THD+N improved by about 9.5 dB, or roughly 3 times lower.

How Dynamic Range and Headroom Give You a Better Mix Foundation

Dynamic range and headroom shape how much room you have to work with once you're in the mix. A converter with a lower noise floor and lower THD+N gives you a cleaner, quieter starting point before you've touched a single plug-in.

That matters because every processor you add afterward can add a small amount of its own noise and distortion. Stack multiple effects like EQs, compressors, or tape emulations  across a mix and a noisier source starts to show. The result is often hiss or a smeared top end.

A converter with more headroom, lower distortion, and less self-noise keeps your source intact, giving you one less thing to worry about.

Low noise and distortion in your interface can help get the best from your plug-ins during the mix, by creating a cleaner starting point before adding color and analog-style tone where you want it.

Two Points That Often Get Confused

A 32-bit PCM converter, like the ones in Volt audio interfaces, are fixed-point hardware capturing your analog signal in real time. It uses cutting-edge converter chipsets and designs, but it has a real ceiling at 0 dBFS, so you still need to gain-stage properly, and you can still clip it. That’s why we added features like Auto-Gain with Clip Protection. As soon as any hot signals are detected, Volt reduces your level automatically to avoid clipping.

Auto-Gain with Clip Protection makes setting levels easy on Volt Gen 2 and Volt Max USB Audio Interfaces, helping you make the most of that increased dynamic range and lower distortion.

Final Thoughts on 32-Bit Audio

Bit depth is one of those specs that rewards a little understanding. Once you understand why it matters, it's easier to hear the clarity and headroom it brings while you are recording and mixing.

Our second generation of Volt USB audio interfaces give you quieter noise floors, lower distortion, and more headroom to work with, before you've touched a single fader or plug-in. So whether you're tracking your first demo or building a final, your songs have the best starting point.

Learn more about Volt USB audio interfaces ›

— Tom Waterman, Darrin Fox



---

Related Articles

Exploring Volt's Tone Shaping Preamps

Why Apollo Sounds Better

Setting Recording Levels Instantly with Volt USB Audio Interfaces

What Free Software Comes with Volt?



Frequently Asked Questions

What is bit depth in audio recording?

Bit depth is the number of binary steps used to measure the loudness of each sample in a digital recording. More bits means more possible values between silence and full scale (0 dBFS), which lowers the noise floor and increases dynamic range.

Does bit depth actually matter for my recordings?

Yes, but mostly for headroom and noise floor rather than “sound quality” in the way a preamp or mic choice would. Recording at 24-bit instead of 16-bit gives a much lower noise floor and far more headroom to catch peaks without clipping.

What's the practical difference between 24-bit and 32-bit recording?

24-bit already offers a theoretical dynamic range of around 144 dB, more than any mic, preamp, or converter can use in practice. What matters more for real-world quality is the converter itself, since noise and distortion, not bit depth alone, set the actual limit.

What’s 32-Bit floating point?

32-bit floating point is different from 32-bit audio conversion. It is a math format that can be used to calculate and store really long numbers with lots of decimal places, that some DAWs and specialist field recorders use internally for near-limitless mathematical headroom (over 700 dB).

Floating point is fantastic for flexibility inside the DAW, but it doesn't change what the analog-to-digital converter itself was able to capture in the first place. That's where a genuinely better PCM converter earns its keep: a cleaner capture stage, whether your project is set to 24-bit or 32-bit.

If my interface has 32-bit converters, do I still need to worry about gain staging?

Yes. Volt's 32-bit converters are fixed-point (PCM), not floating point, so pushing a signal hot can still cause clipping –– that’s why Volt Gen 2 and Volt Max now feature Clip Protection to automatically adjust input gain when needed to avoid harsh clipping distortion.

32-bit floating point converters, as used by some field recorders and broadcast devices, are a different technology built specifically to avoid that by scaling the A/D function against reference level, using several converter stages that are mathematically combined with a “stacking” algorithm to create scaling input headroom.

What's the difference between a 32-bit PCM converter and 32-bit floating point recording?

A 32-bit PCM converter is the analog-to-digital hardware capturing your signal, and its real-world dynamic range is set by its analog circuitry. 32-bit floating point is a math format used to process or store audio with near-limitless headroom using incredibly long numbers (a high order of decimal places), but even if your DAW can use 32-bit floating point audio files, it doesn't change what the converter itself was able to capture to begin with unless the files were recorded with special stacking A/D converter designs.

What is headroom in recording?

Headroom is the gap between your analog recording input level (referenced in dBu) and digital maximum, where clipping occurs at full scale (0 dBFS), plus the gap between your noise floor and the quietest usable signal. Higher dynamic range gives you more usable headroom in both directions.

Maximum input level sets how much analog signal you can send into the converter before you reach 0 dBFS. Volt Gen 2 and Volt Max can accept up to +14.5dBu into the mic input at minimum gain, and +22 dBu into the line input, offering up to 18 dB headroom over typical professional audio nominal levels, which are referenced as +4 dBu (0VU).

Does a better converter really make recordings sound more “pro”?

Cleaner conversion means less self-noise and distortion baked into your source before you open a single plug-in. Since every processing stage in a mix can add or multiply the noise floor a little, or add distortion. Starting from the purest possible source gives you the most room to shape your sound before things get muddy.
