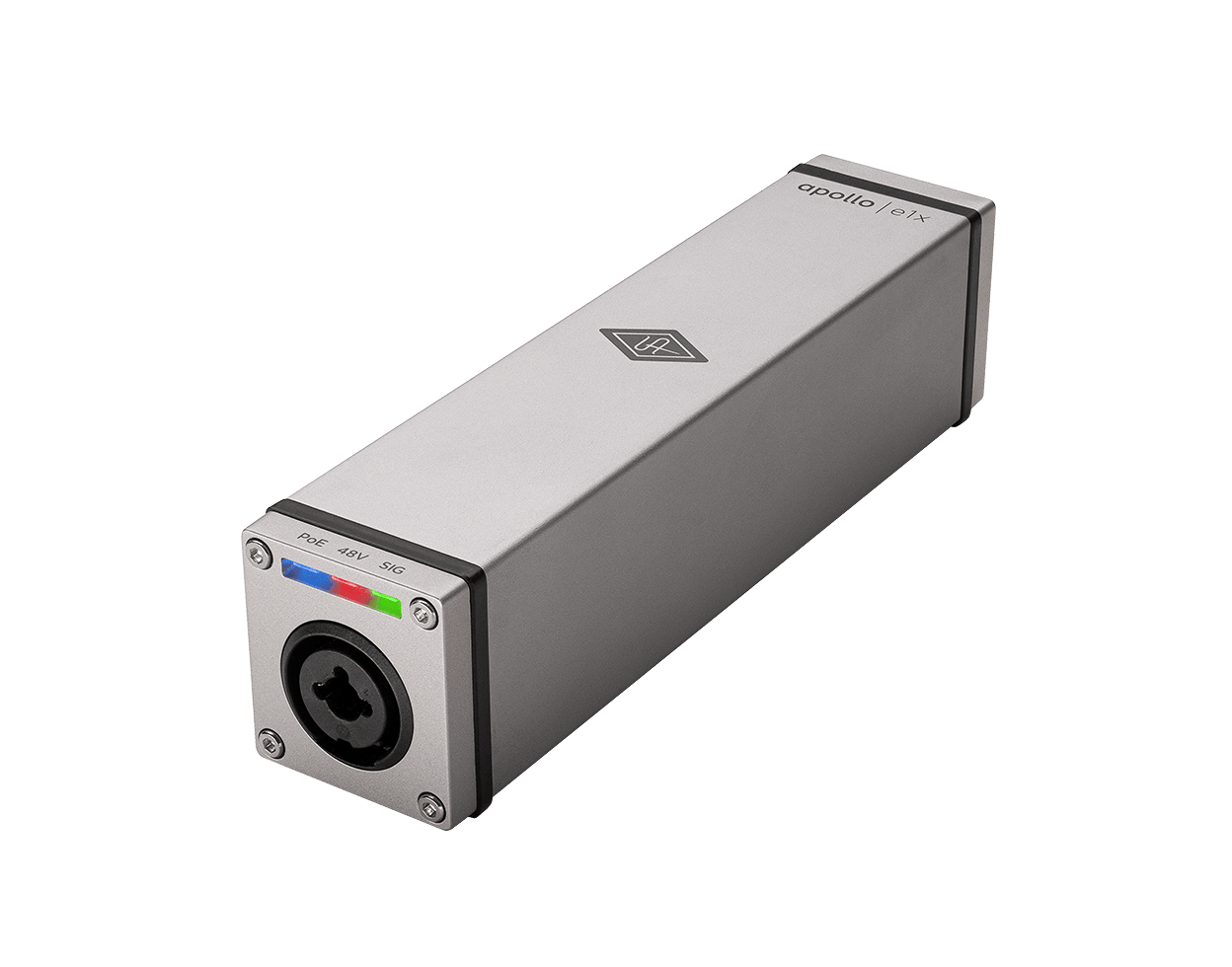

Apollo e1x

Put Unison preamps on stage or in your studio with Dante.

Expand any Dante® network with remote-controlled mic/line preamps using Power over Ethernet (PoE)
Combine with Apollo x16D interface to get the authentic Unison™ mic preamp sounds of API, Avalon, Manley, Neve, SSL, and more
Link multiple Apollo e1x units with included coupling bracket and integrated mic-stand mount
Pair with Apollo e2m stereo headphone amplifier/line interface and Apollo x16D for a complete I/O solution

Details & Downloads

Downloads

Read Manual

Details

Single-channel Unison™ mic/line preamp for Apollo x16D with Dante networked audio connectivity
Get the sound of iconic mic preamps from API, Neve, Manley, SSL, and more
Assistive Auto-Gain for effortless level setting
Unison support for up to 16 Apollo e1x units per Apollo x16D (DSP resource dependant)

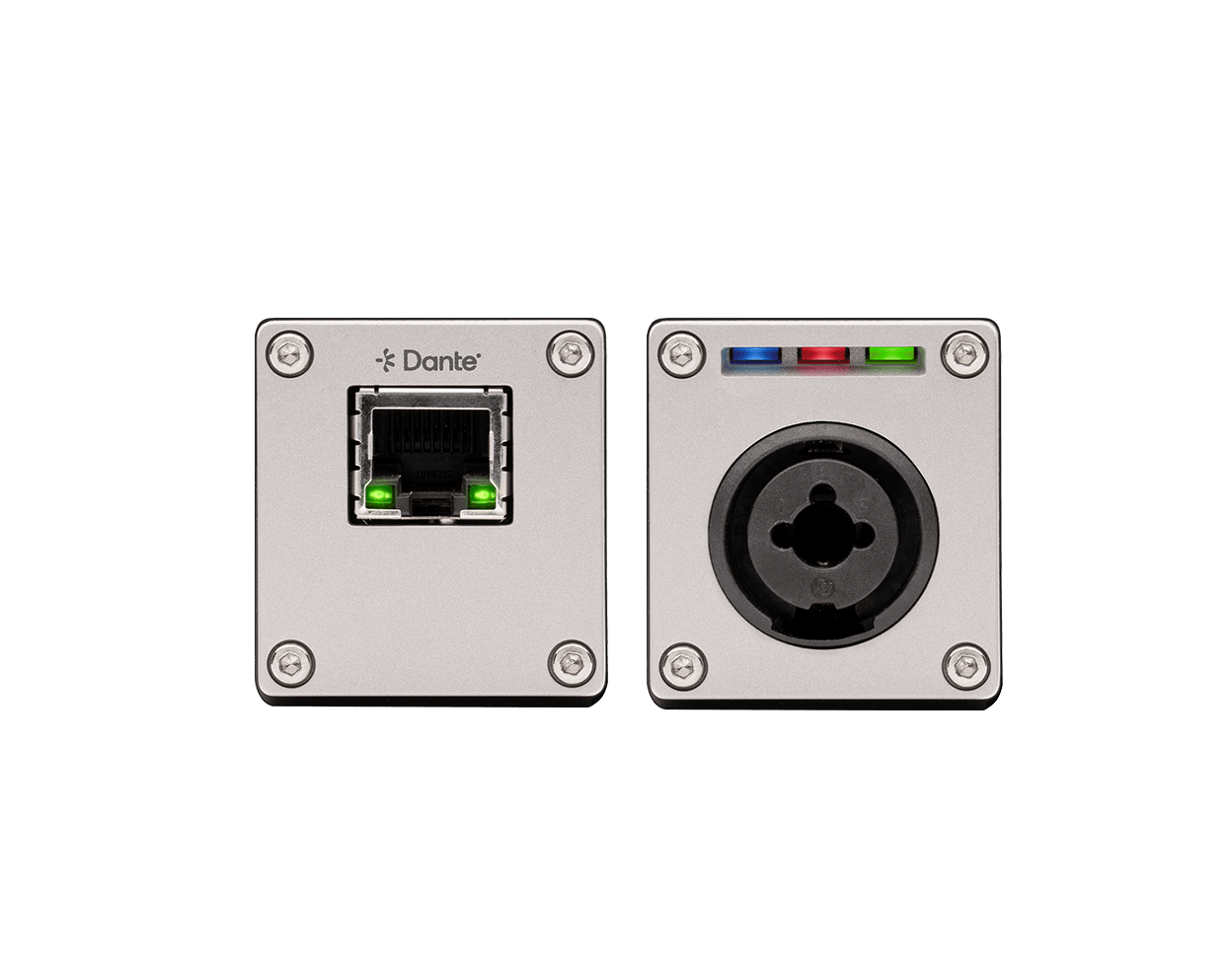

Mic/line input combo jack (XLR mic / 1/4″ line input)
Control gain, +48V phantom power, polarity inversion, and low cut over the network with UAD Console
Use with any Dante audio network
Dante routing directly via Dante Controller or in UAD Console with Apollo x16D
Sample rate support: 44.1 to 96 kHz and AES67 support @ 48 kHz (set in Dante Controller)
Dante Device Lock (set in Dante Controller)

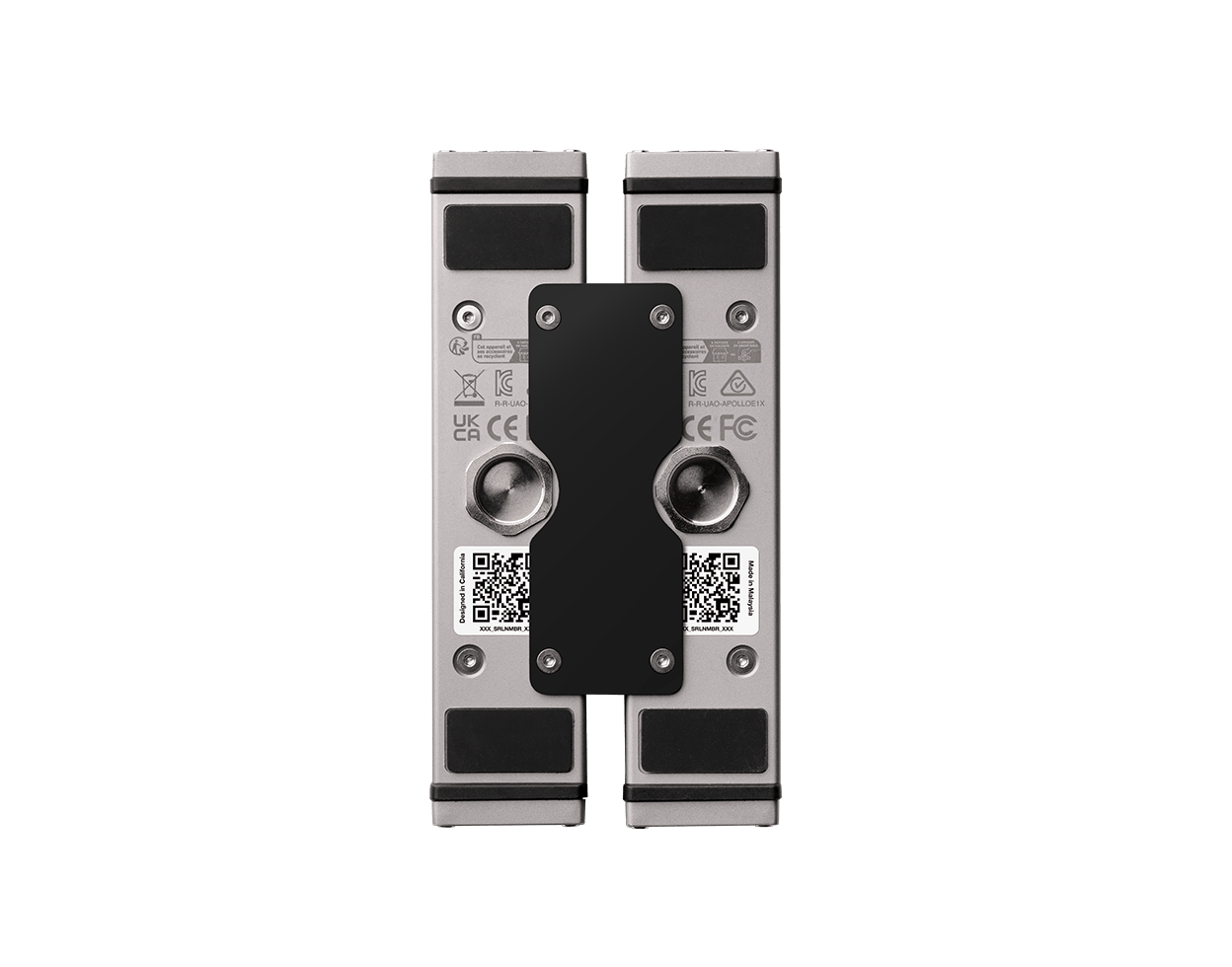

Included coupling bracket to securely link multiple Apollo e1x preamps

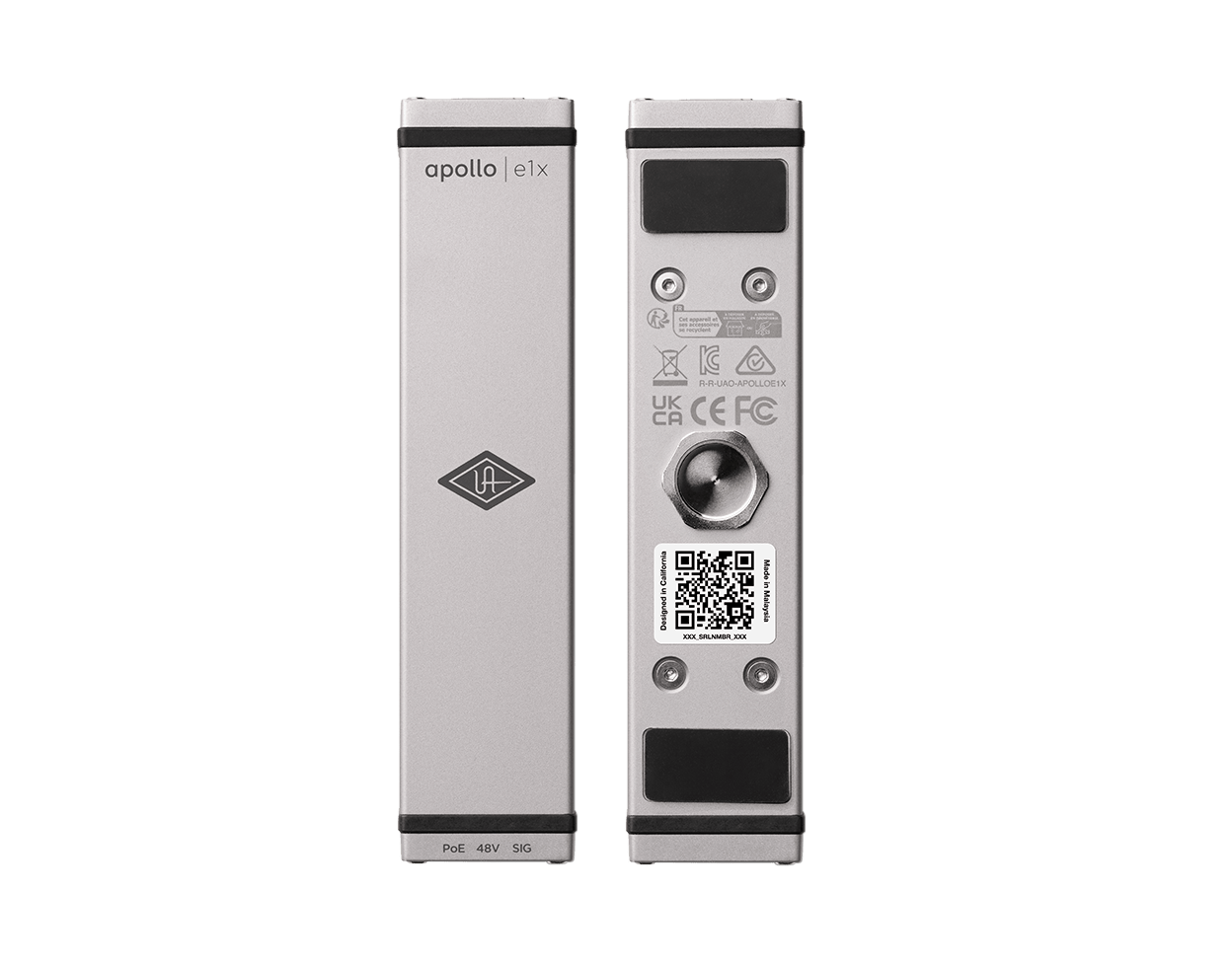

Threaded 5/8″ mic stand mount
Free industry-leading technical support from knowledgeable audio engineers

Specifications

Gain range: 10 to 65 dB
Mic input: 120 dB dynamic range, -115 dB THD+N, +25 dBu max. input
Line input: 119 dB dynamic range, -112 dB THD+N, +24 dBu max. input
Power over Ethernet (PoE 802.3af: 4W, 3W typical)

Add the Iconic Sound of Preamps from Neve, API, and More

Apollo e1x lets you add remote-controllable Unison mic/line preamps to your Apollo x16D interface, putting legendary preamp sounds from API, Neve, Manley, SSL, and more on stage, at front-of-house, or in your multi-room studio using Dante networked audio.

Use with Any Dante Audio Network

Apollo e1x can be used as a remote-controllable mic/line preamp over any Dante network without an Apollo x16D interface, ideal for expanding your inputs — from additional stage rack connections to front-of-house measurement mics to a tamper-proof lectern preamp — no matter what Dante-enabled device you use.

Link Multiple Apollo e1x Preamps

Need more mic pres? No problem. Use the included coupling bracket and threaded mic stand mount to connect multiple Apollo e1x preamps securely, giving you a clean, organized setup anywhere.

Pair with Apollo x16D and e2m Personal Monitoring

Unlock a complete I/O solution for your Dante network by pairing with Apollo e2m personal monitoring and Apollo x16D audio interfaces. This system gives you UAD realtime low-latency audio processing with personal cue monitoring and the iconic tone of classic mic preamps.
