SD-5 Dynamic Microphone with Hemisphere Modeling

Price displayed at checkout. Upgrade not available, please select full version.
Sale
SD-5 Dynamic Microphone with Hemisphere Modeling
SD-5 Dynamic Microphone with Hemisphere Modeling
SD-5 Dynamic Microphone with Hemisphere Modeling
SD-5 Dynamic Microphone with Hemisphere Modeling
SD-5 Dynamic Microphone with Hemisphere Modeling

SD-5 Dynamic Microphone with Hemisphere Modeling

Get kick and bass tones from your favorite era.

  • Get studio-quality kick drum and bass recordings with a UA-designed dynamic modeling microphone
  • Harness the authentic sound of the most popular microphones ever made with Hemisphere mic modeling technology
  • Get pristine results in any environment, from pro rooms and home studios to stages
  • Find your perfect sound with ease using filter, proximity, and axis controls

Save $20 on SD-5 Dynamic Microphone with Hemisphere Modeling! Ends 12/31. Details

Sweetwater Sound Guitar Center Musician's Friend American Musical Supply Vintage King Amazon Zzounds Alto Music Sam Ash Perfect Circuit
Details & Downloads

Downloads

View Downloads

Read Manual

Details

Included Hemisphere Mic Models

DN-12A

Based on a popular dynamic microphone dating back to the 1950’s — this model is favored by producer/engineer John Leckie (Radiohead, Paul McCartney, Pink Floyd), who often uses a 12 model alongside a 421 on kick drums.*

DN-112

This Austrian-made kick drum microphone is considered an industry standard. Used on countless hip-hop and rock records, it has extended low-frequency capture with clear top end presence for beater attack.

DN-6

Our DN-6 model is based on an American kick drum mic that has become a go-to for studio recording. With its deep bass and heavily contoured sound, it works especially well for tight, syncopated Metal genres.

DN-52

The DN-52 model is based on a current production version of the American 52-style kick drum microphone. This model provides extended

DN-SUB

The DN-SUB model is based on a studio trick which uses a full-range speaker driver wired-in-reverse for extended sub frequency capture. Many engineers will blend this sound along with a traditional mic for adding weight to kick drums and bass cabinets — now an easier task with just a single mic and the Hemisphere plug-in.

Specifications
  • Microphone Type: Dynamic
  • Polar Pattern: Supercardioid
  • Frequency Range: 20 Hz - 15 kHz
  • Sensitivity: -64 dB (0 dB = 1V/Pa @ 1 kHz)
  • Output Impedance: 50 Ohms
  • Connector: 3-Pin XLRM
  • Included Accessory: Integrated standmount w/ angle adjustment, "⅝" to ⅜" thread adapter, storage pouch
  • Dimensions: 4.06"(103.2 mm) length, 5.61" (142.6 mm)
  • Weight: 1.6 lbs (727 g)

Get Kick & Bass Tones From Your Favorite Era

Easily capture all the punch and heft of your kick drums, bass amps, and anything else where extended low-end is required. A classic dynamic mic with a supercardioid polar pattern, high SPL handling, and best-in-class Hemisphere mic modeling — SD-5 gives you pro sound, no matter where you record.

Record Through Five Workhorse Kick Mics

SD-5 is powered by the same mic modeling technology found in our award-winning UA Sphere microphones. With the included Hemisphere Mic Collection software, it’s the only dynamic modeling mic that gives you the authentic sound of famous dynamics from Shure, Audix, and AKG.*

A Modeling Mic That Works for You

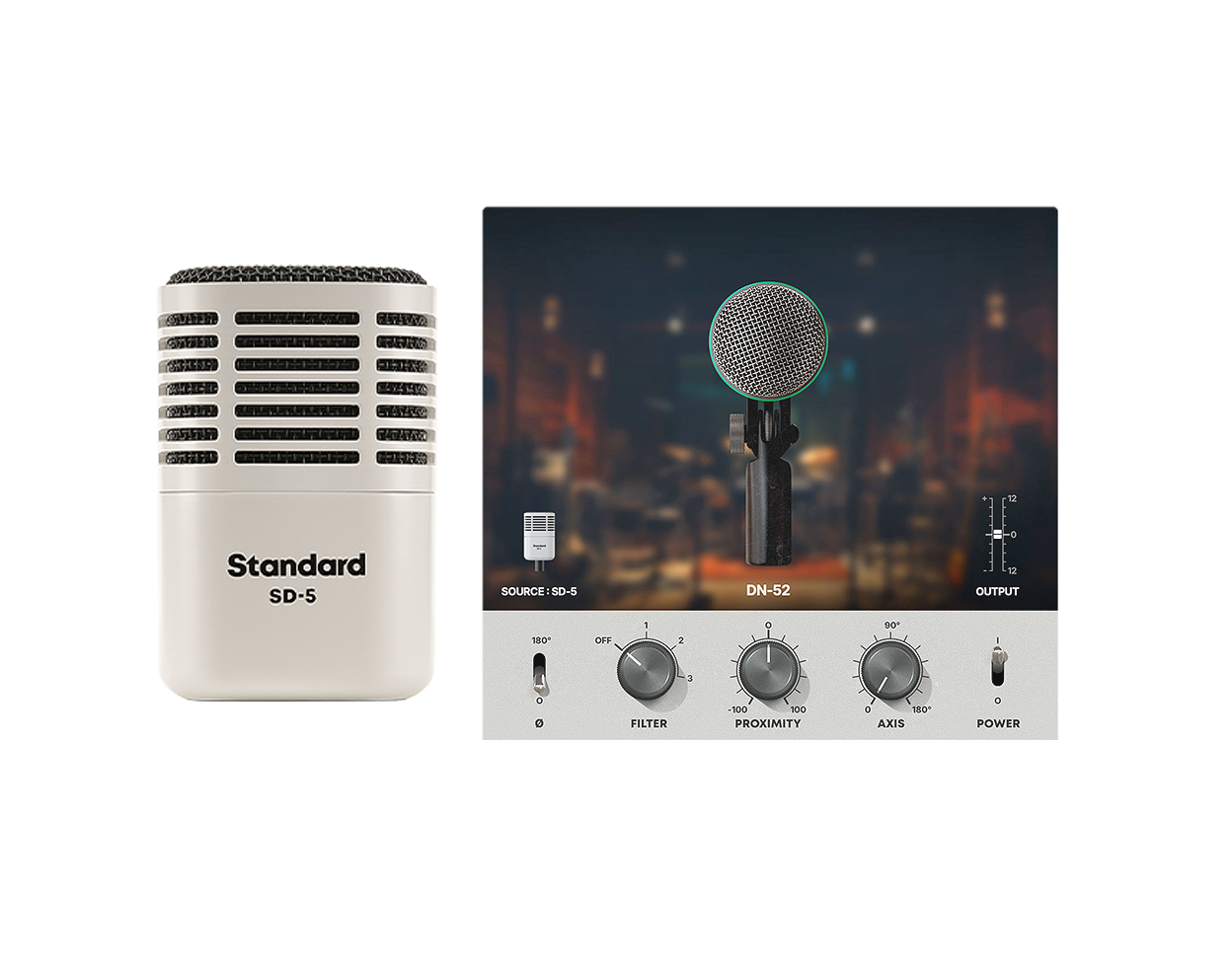

SD-5 and the included Hemisphere Mic Collection software work with or without UA hardware, and go way beyond subtle EQ curves to give you precise control over filter, proximity, and axis — an industry first. Just set up SD-5 and use the plug-in to quickly find that “sweet spot” for your kick drum or bass amp.

Easily Capture Your Best Bass Sounds

We fine-tuned the supercardioid polar pattern on SD-5 for use on stage or in the studio. And with its ultra-high SPL capability and exceptional isolation, you’ll capture all the thump, tone, and transients in your instrument without bleed from other sources.

Add a Pro Mic with Vintage Style

With all-metal construction, retro styling, and hand-selected capsules, SD-5 gives you a trusted companion to reliably capture valuable low-end frequencies for decades of solid performance.

Compare Models

UA Studio Sessions

Frequently Asked Questions

The Hemisphere Mic Collection is a UAD plug-in used in tandem with Standard Series microphones, giving users access to an entire collection of legendary microphones from Neumann, Shure, Sennheiser, AKG, and more.*

Your plug-ins come in 2 versions: Native (run on your computer) and UAD-2 (run on Apollo and Satellites). You can download and install the Native plug-ins from the UA Connect application after you register your microphone from the Mics tab. To access the UAD-2 plug-ins, download the UAD Software from the Apollo & UAD-2 tab in UA Connect and authenticate them via the UAD Meter app. To get started simply download UA Connect or read our help guide for more info.
